STRCTURE CHARACTERISTIC:

ZNSLX-1450 high-precision double-spiral slitting machine is a new product with high precision, stable operation, energy saving and high efficiency developed by our company using German technology combined with years of experience in producing paper cutters. Widely used in cardboard, coated paper, kraft paper, cultural paper, double adhesive tape, high gloss photo paper, gold and silver cardboard, aluminum foil paper, laser laser paper, tobacco and alcohol packaging paper. The knife roll adopts double-rotary spiral knife roll design, with small cutting force, clean paper section, high efficiency and stable rotation. German precision bearing and cutting knife have high cutting precision; light touch computer interface control, easy operation; reasonable design anti- The curved device can effectively remove the curl of the paper roll, make the paper flatter, and is more conducive to the stability of the paper roll tension. ZNSLX-1450 high-precision double-spiral slitting machine is a high-efficiency, high-precision, high-stability paper processing equipment. For the cut paper, it does not need to be trimmed, and it can be directly printed on the printing machine, which effectively improves the economy and reduces the production cost. It is also a paper processing machine commonly used in the paper industry and the printing industry.

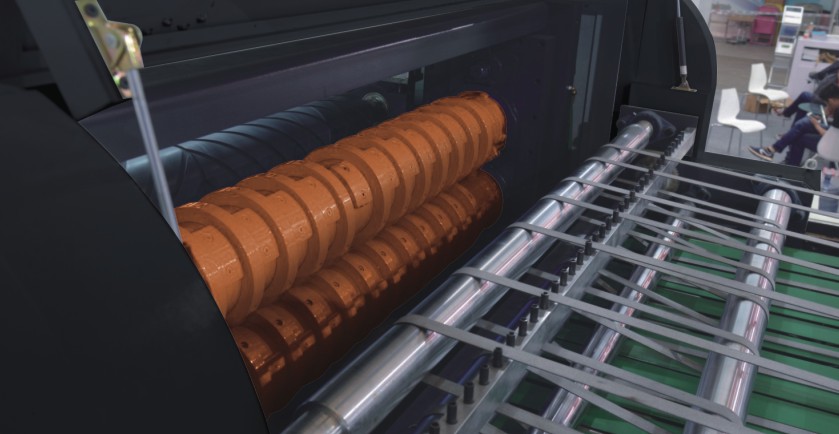

UPPER AND LOWER KNIFE DOUBLE

SPIRAL SPIRAL CUTTER

Japan imported spiral sipes, high precision, good stability, cutting paper without burrs; high-quality gear box, the use of gearless design gears, low meshing noise, double the life of traditional gearbox; good steel material wall And the support pieces, after aging treatment, and then processed by the imported large-scale three-dimensional machining center, the accuracy level requirements are high, the processing error is smaller, the whole machine operation is more stable and reliable.

SERVO FULLY AUTOMATIC SLITTING SECTION

Pneumatic shearing knife group innovative design with two-stage automatic air knife and knife action, precise adjustment of the depth of the upper and lower blade overlap, can adjust the angle of the blade due to different feeding direction and free tool fast fixing knife group Features. The shear type slitting method has the characteristics of less powder when cutting, smooth cut surface and high-speed slitting environment. The high rigidity tool holder can be applied to the 400m/min high-speed slitting environment to improve the production efficiency and ensure the stability of the material quality.

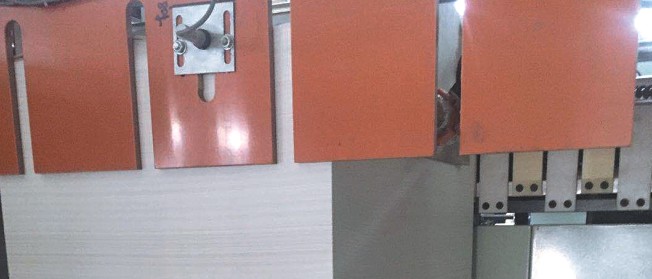

FINISHED PAPER PART

High-end, white card, white plate, copper plate, cut finished paper without burrs, no dust, no scratches on the surface directly printed.

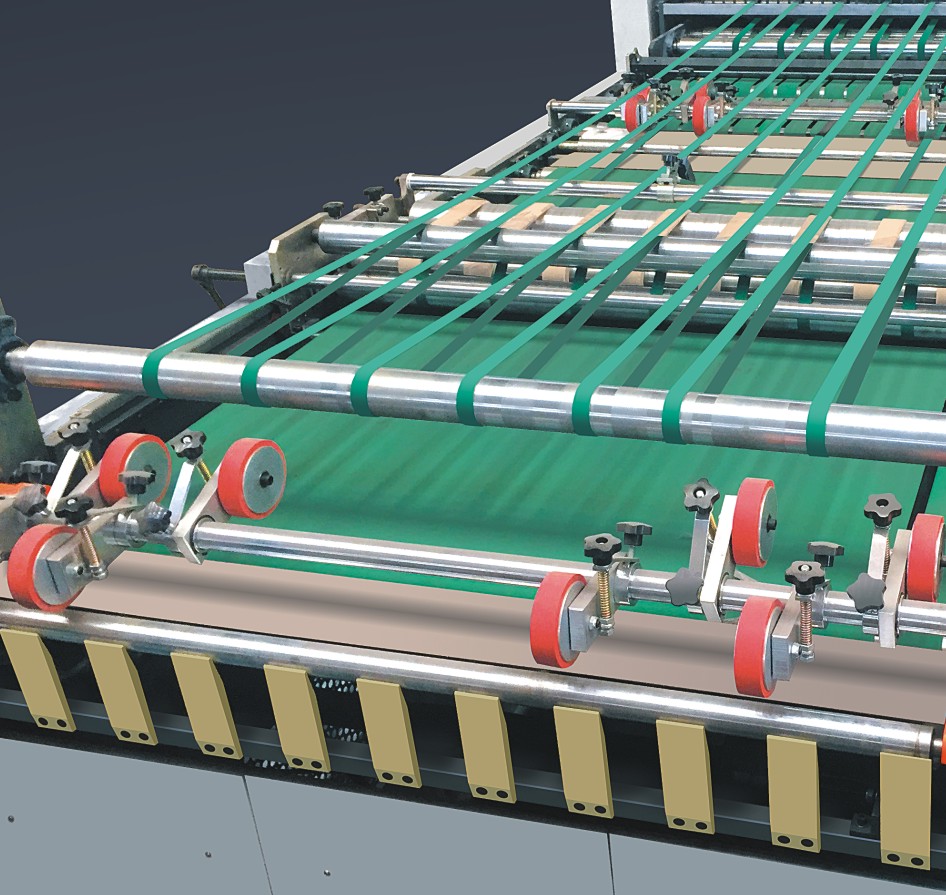

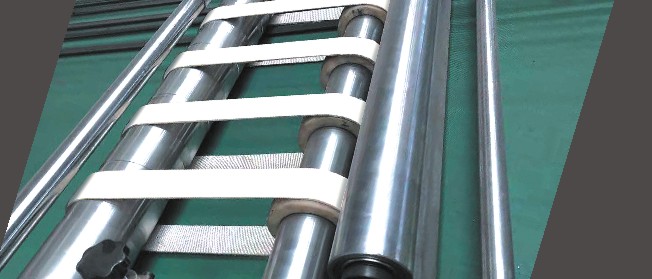

OVERLAPPING PART

The power soft belt is used to synchronize the upper and lower belts, so that the paper will not

scratch the surface during transportation, and the reasonable winding layout makes the paper

conveying more stable.

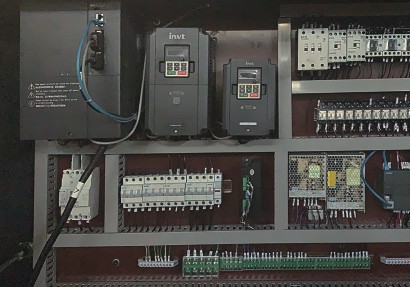

ELECTRONIC CONTROL PART

AlI adopt Siemens PLC imported from Germany and the domestic joint-brand brand drive control system to make the operation easier and more automated, cut off the length, quantity and total number of finished products,etc., and can be directly input on the touch screen. The actual cut length and the number of cuts can be displayed in time. The high-efficiency and energy-saving high-power domestic joint-venture brand servo-driven spiral cutter shaft, combined with the energy storage cabinet, effectively reduces the loss of electric energy, improves economy and reduces production costs.

MOTOR PART

Using Italian Fiss Motor
